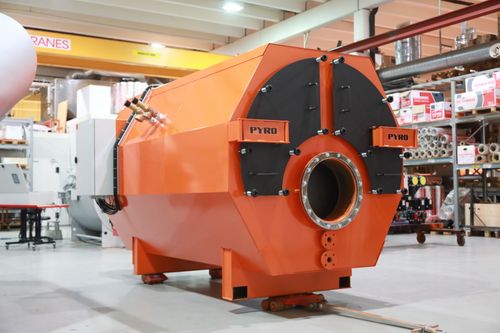

Fuel Fired Heaters Smoke tube (400-4000kW)

Share this product
  • Heating of central heating water for Marine vessels
  • Thermal fluid: Technical FW (95⁰C standard, 120⁰C upon request)
  • Max working pressure: 6 bar
  • Design pressure: 9 bar
  • Voltage: 380/440/480/690 V
  • Frequency: 50-60Hz
  • Efficiency: 92%
Features
  • Automatically start/stop
  • 2-step or modulating oil burner
  • Flexible mounting of control cabinet (600x1000x250mm)
  • Easy operation and monitoring
  • ~Compatible with Ulmatec WEMS
  • ~Interface to IAS –possibilities for remote control
  • ~On screen user guidelines
  • ~Alarm handling
  • ~Fuel consumption logging
  • ~Run hour counter oil burner and pumps
  • Optional additional electric heating up to 160kW.
  • Optional coils for potable water system (Pre-heating)
  • Marine Diesel Oil, optional Bio Fuel or LNG
  • Optional fuel pre-heating
  • Safety functions according to Class requirements
  • Full pump control (max. 4 central heating pumps)
  • Full potable pump control (max. 2 potable pumps)
  • Type Approval Certificate for control system with DNV & LR. Other upon request.
Benefits
  • Easy installation
  • Service friendly
  • ~Concentrated service space
  • ~Soot cleaning hatches in front & rear
  • More stored heated water compared to water-tube heater
  • 2 step or modulating burner types allows for less start/stop cycles

‍
